SD1148-80
14-bit, 80MHz, Dual Channel ADC
Overview & Features

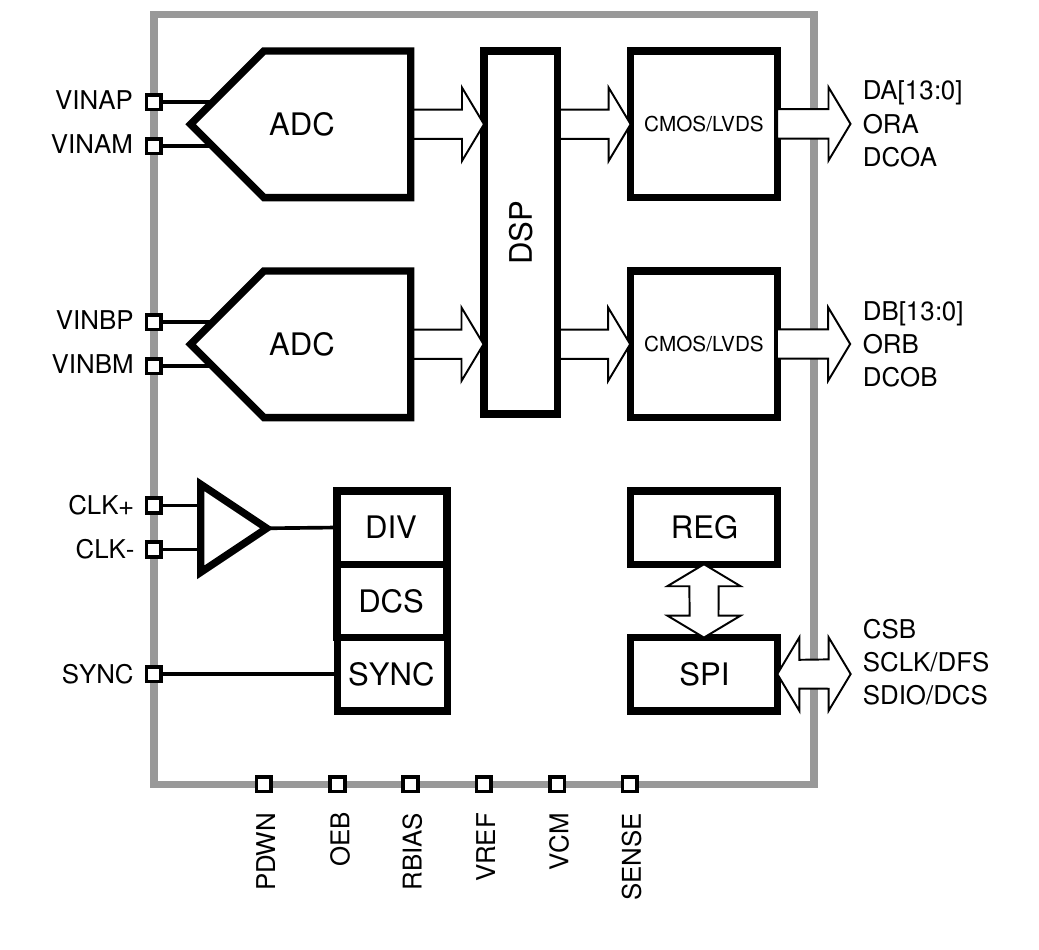

The SD1148 is a dual-channel, 14-bit, analog-to-digital converter (ADC) supporting sampling rates up to 80MSps. The device uses a multistage pipeline architecture to achieve high signal-to-noise ratio (SNR) and linearity, over wide input signal bandwidth. The SD1148 can be set to operate using either CMOS or LVDS output interface. Programming for configuration and control is accomplished using a 3-wire SPI-compatible serial bus. The digital output data can be programmed to be delivered in offset binary, twos complement format, or gray code.
The device includes a DSP block that features decimation, digital down conversion (DDC), and IQ mismatch correction.
Features
* SNR: 74.8dBFS at fIN = 30.2MHz and fS = 80MSps
* SFDR: 84.0dBc at fIN = 30.2MHz and fS = 80MSps
* -152.2dBFS/Hz input-noise at fIN = 30.2MHz and fS = 80MSps
* 2.0V nominal input
* Typical power consumption: 202mW at 80MSps
* Integer 1-to-8 input clock divider (640MHz maximum input rate)
* Sample rates of up to 80MSps
* 1.8V analog supply voltage
* LVDS (ANSI-644 levels) outputs
* Internal ADC voltage reference
* ADC clock duty cycle correction
* Serial port control
* Decimation by 2, 4
* Digital Down-Convertion
* IQ Mismatch Correction
* Energy saving power-down modes
Specification
| Product Specifications | |||
|---|---|---|---|
| Resolution | 14-bit | Speed (Msps) | 80 |
| Number of Channels | 2 | SFDR (dBc)@70.2MHz | 84 |
| SNR (dBFS)@70.2MHz | 74.8 | ||
| Drop-in Replacement | Replacement Part # | Plural Price ($) | Replacement Part Price | Package |
|---|---|---|---|---|
| No | $ | $ | 64 pins (9x9 package) |
