SD1148ET-170

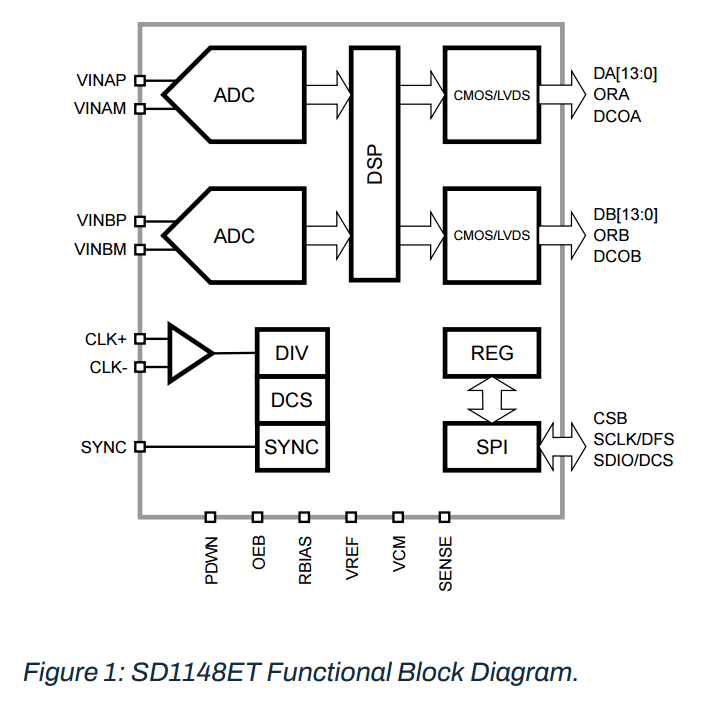

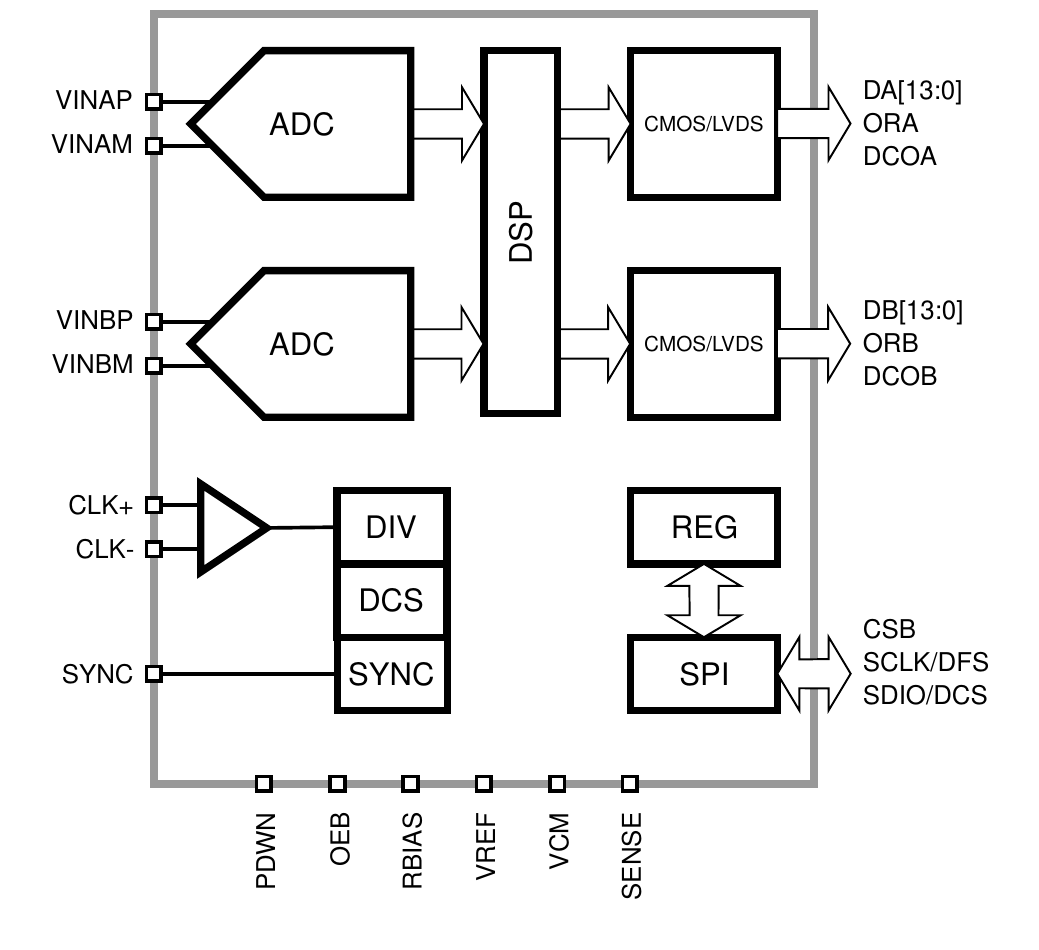

The SD1148ET is a dual-channel, 14-bit, analog-to-digital converter (ADC) supporting sampling rates up to 170MSps. The
SD1148ET supports an extended temperature range of -55°C to 125°C. The device uses a multistage pipeline
architecture to achieve high signal-to-noise ratio (SNR) and linearity, over wide input signal bandwidth. The SD1148ET
can be set to operate using either CMOS or LVDS output interface. Programming for configuration and control is
accomplished using a 3-wire SPI-compatible serial bus. The digital output data can be programmed to be delivered in
offset binary, twos complement format, or gray code.

The device includes a DSP block that features decimation, digital down conversion (DDC), and IQ mismatch correction.

FEATURES

• Extended temperature range (-55°C to 125°C)
• SNR: 72.2dBFS at fIN = 70.2MHz and fS = 170MSps
• SFDR: 82.0dBc at fIN = 70.2MHz and fS = 170MSps
• -153.0dBFS/Hz input-noise at fIN = 70.2MHz and fS =
  170MSps
• 1.8V nominal input
• Typical power consumption: 495mW at 170MSps
• Integer 1-to-8 input clock divider (1000MHz maximum
  input rate)
• Sample rates of up to 170MSps
• 1.8V analog supply voltage
• LVDS (ANSI-644 levels) outputs
• Internal ADC voltage reference
• ADC clock duty cycle correction
• Serial port control
• Decimation by 2, 4
• Digital Down-Convertion
• IQ Mismatch Correction
• Energy saving power-down modes
