SD2142-14
14-bit, 65MHz, Dual Channel ADC
Overview & Features

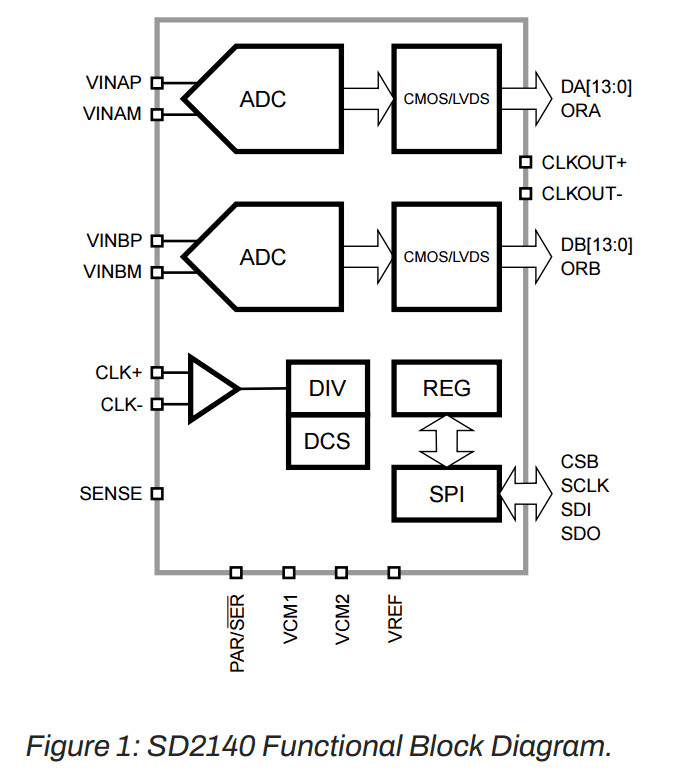

The SD2142 is the dual-channel, 14-bit, analog-to-digital converter (ADC) supporting sampling rates up to 65MSps. The
device uses a multistage pipeline architecture to achieve high signal-to-noise ratio (SNR) and linearity, over wide input
signal bandwidth. The SD2142 can be set to operate using either CMOS or LVDS output interface. Programming for
configuration and control is accomplished using a 4-wire SPI-compatible serial bus. The digital output data can be
programmed to be delivered in offset binary, twos complement format, or gray code.
FEATURES
- SNR: 74.8dBFS at fIN = 30.2MHz and fS = 65MSps
- SFDR: 91.0dBc at fIN = 30.2MHz and fS = 65MSps
- -151.5dBFS/Hz input-noise at fIN = 30.2MHz and fS =
65MSps - 2.0Vp-p nominal input
- Typical power consumption: 335mW at 65MSps
- Integer 1-to-8 input clock divider (520MHz maximum
input rate) - Sample rates of up to 65MSps
- 1.8V analog supply voltage
- LVDS (ANSI-644 levels) outputs
- Internal ADC voltage reference
- ADC clock duty cycle correction
- Serial port control
- Energy saving power-down modes
Specification
| Product Specifications | |||
|---|---|---|---|
| Resolution | 14-bit | Speed (Msps) | 65 |
| Number of Channels | 2 | SFDR (dBc)@70.2MHz | 86.39 |
| SNR (dBFS)@70.2MHz | 75.17 | ||
| Drop-in Replacement | Replacement Part # | Plural Price ($) | Replacement Part Price | Package |
|---|---|---|---|---|
| Yes | LTC2142-14 | $29.26 | $41.80 | 64 pins (9x9 package) |
Stock, EVKs & Documentation
No pricing or stock information available for part number: SD2142-14
