SD4249
Overview & Features

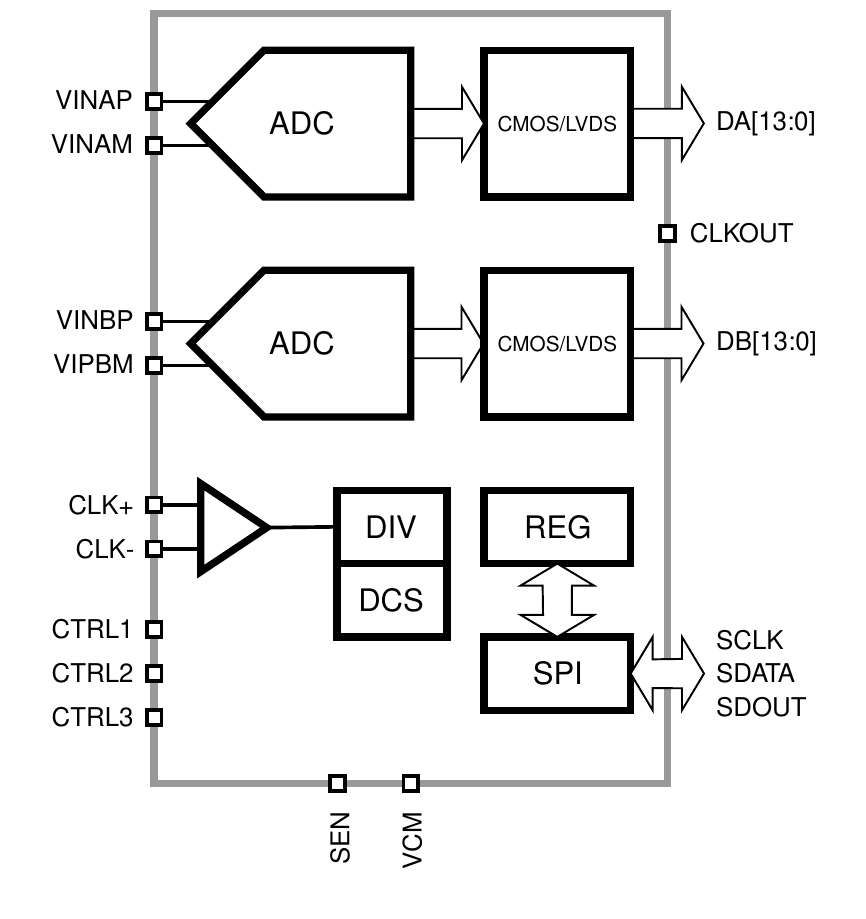

The SD4249 is a dual-channel, 14-bit, analog-to-digital converter (ADC) supporting sampling rates up to 250MSps. The device uses a multistage pipeline architecture to achieve high signal-to-noise ratio (SNR) and linearity, over wide input signal bandwidth. The SD4249 can be set to operate using either CMOS or LVDS output interface. Programming for configuration and control is accomplished using a 4-wire SPI-compatible serial bus. The digital output data can be programmed to be delivered in offset binary, twos complement format, or gray code.
Features
* SNR: 71.1dBFS at fIN = 70.2MHz and fS = 250MSps
* SFDR: 75.2dBc at fIN = 70.2MHz and fS = 250MSps
* -156.2dBFS/Hz input-noise at fIN = 70.2MHz and fS = 250MSps
* 2.0V nominal input
* Typical power consumption: 600mW at 250MSps
* Integer 1-to-8 input clock divider (1000MHz maximum input rate)
* Sample rates of up to 250MSps
* 1.8V analog supply voltage
* LVDS (ANSI-644 levels) outputs
* Internal ADC voltage reference
* ADC clock duty cycle correction
* Serial port control
* Energy saving power-down modes
Specification
| Product Specifications | |||
|---|---|---|---|
| Resolution | 14-bit | Speed (Msps) | 250 |
| Number of Channels | 2 | SFDR (dBc)@70.2MHz | 75.2 |
| SNR (dBFS)@70.2MHz | 71.1 | ||
| Drop-in Replacement | Replacement Part # | Plural Price ($) | Replacement Part Price | Package |
|---|---|---|---|---|
| Yes | ADS4249 | $56.21 | $80.30 | 64 pins (9x9 package) |
