SD9258-80
14-bit, 80MHz, Dual Channel ADC
Specification
| Product Specifications | |||
|---|---|---|---|
| Resolution | 14-bit | Speed (Msps) | 80 |
| Number of Channels | 2 | SFDR (dBc)@70.2MHz | 83.78 |
| SNR (dBFS)@70.2MHz | 75.04 | ||
| Drop-in Replacement | Replacement Part # | Plural Price ($) | Replacement Part Price | Package |
|---|---|---|---|---|
| Yes | AD9258-80 | $51.15 | $73.07 | 64 pins (9x9 package) |
Overview & Features

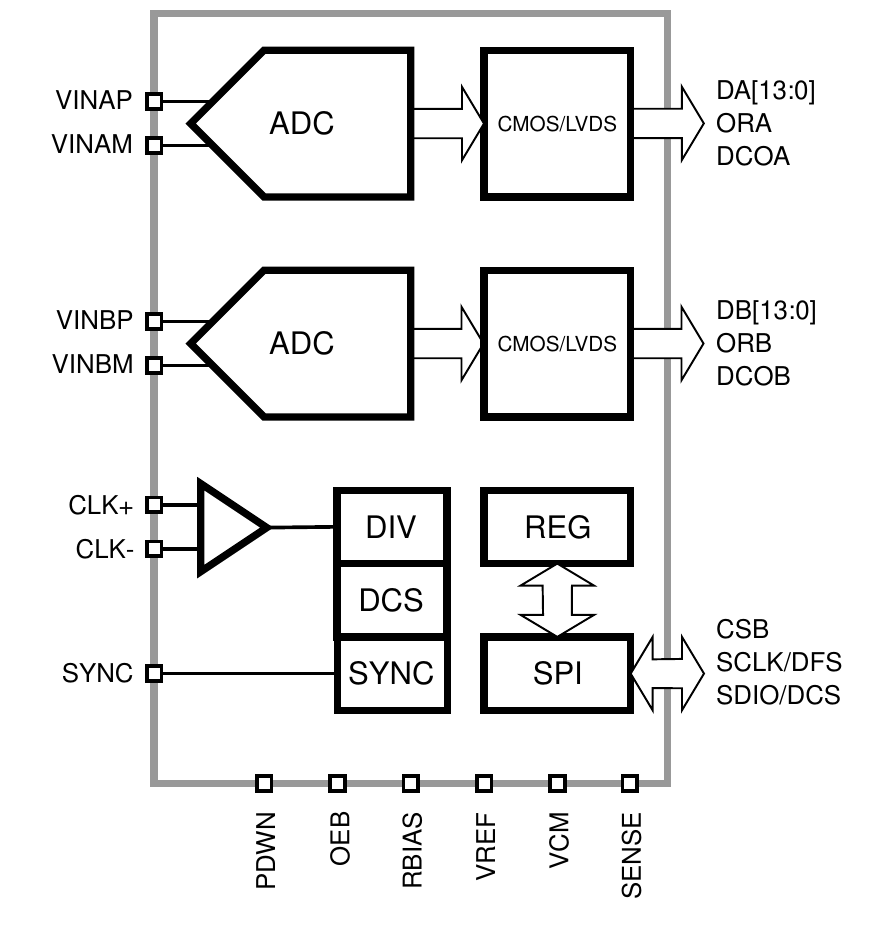

The SD9258 is a dual-channel, 14-bit, analog-to-digital converter (ADC) supporting sampling rates up to 80MSps. The
device uses a multistage pipeline architecture to achieve high signal-to-noise ratio (SNR) and linearity, over wide input
signal bandwidth. The SD9258 can be set to operate using either CMOS or LVDS output interface. Programming for
configuration and control is accomplished using a 3-wire SPI-compatible serial bus. The digital output data can be
programmed to be delivered in offset binary, twos complement format, or gray code.
FEATURES
- SNR: 74.8dBFS at fIN = 30.2MHz and fS = 80MSps
- SFDR: 86.0dBc at fIN = 30.2MHz and fS = 80MSps
- -152.2dBFS/Hz input-noise at fIN = 30.2MHz and fS =
80MSps - 2.0Vp-p nominal input
- Typical power consumption: 350mW at 80MSps
- Integer 1-to-8 input clock divider (640MHz maximum
input rate) - Sample rates of up to 80MSps
- 1.8V analog supply voltage
- LVDS (ANSI-644 levels) outputs
- Internal ADC voltage reference
- ADC clock duty cycle correction
- Serial port control
- Energy saving power-down modes
