SD9609-80
Overview & Features
The SD9609 is a single-channel, 10-bit, analog-to-digital converter (ADC) supporting sampling rates up to 80MSps. The
device uses a multistage pipeline architecture to achieve high signal-to-noise ratio (SNR) and linearity, over wide input
signal bandwidth. The SD9609 uses a CMOS output interface to transfer the data out. Programming for configuration and
control is accomplished using a 3-wire SPI-compatible serial bus. The digital output data can be programmed to be
delivered in offset binary, twos complement format, or gray code.

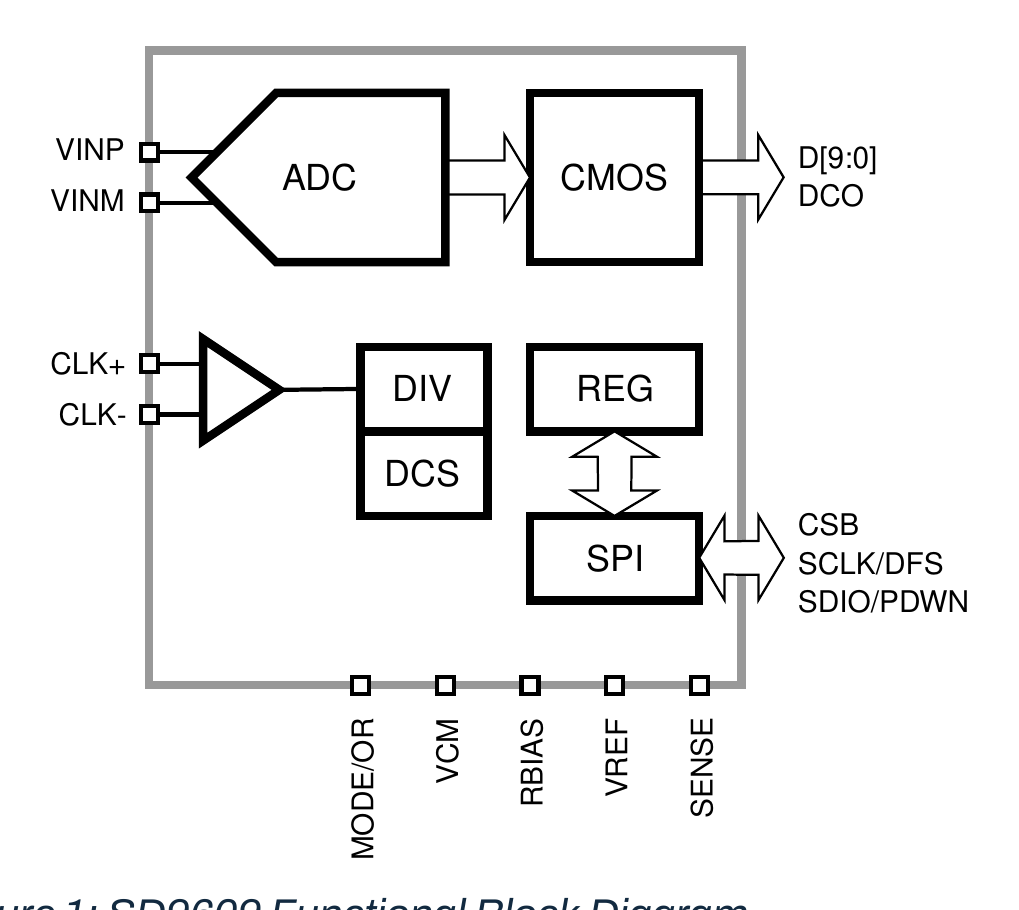

FEATURES
- SNR: 61.4dBFS at fIN = 30.2MHz and fS = 80MSps
- SFDR: 79.0dBc at fIN = 30.2MHz and fS = 80MSps
- -138.4dBFS/Hz input-noise at fIN = 30.2MHz and fS =
80MSps - 2.0Vp-p nominal input
- Integer 1-to-8 input clock divider (640MHz maximum
input rate) - Sample rates of up to 80MSps
- 1.8V analog supply voltage
- Up to 3.3V digital I/O supply voltage
- Internal ADC voltage reference
- ADC clock duty cycle correction
- Serial port control
- Energy saving power-down modes
Specification
| Product Specifications | |||
|---|---|---|---|
| Resolution | 10-bit | Speed (Msps) | 80 |
| Number of Channels | 1 | SFDR (dBc)@70.2MHz | 81.38 |
| SNR (dBFS)@70.2MHz | 61.53 | ||
| Drop-in Replacement | Replacement Part # | Plural Price ($) | Replacement Part Price | Package |
|---|---|---|---|---|
| Yes | AD9609-80 | $4.17 | $5.96 | 32 pins (5x5 package) |
