SD9649-40
14-bit, 40MHz, Single Channel ADC
Overview & Features

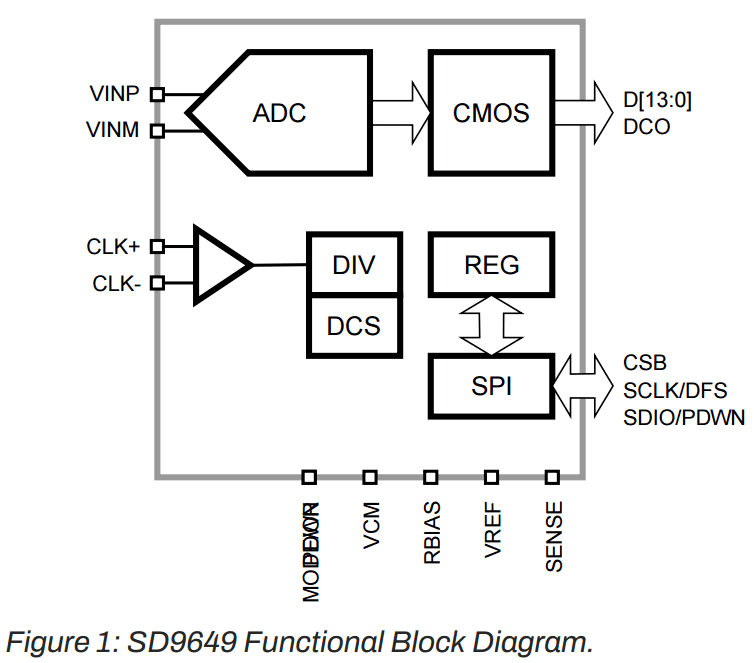

The SD9649 is a single-channel, 14-bit, analog-to-digital converter (ADC) supporting sampling rates up to 40MSps. The device uses a multistage pipeline architecture to achieve high signal-to-noise ratio (SNR) and linearity, over wide input signal bandwidth. The SD9649 uses a CMOS output interface to transfer the data out. Programming for configuration and control is accomplished using a 3-wire SPI-compatible serial bus. The digital output data can be programmed to be delivered in offset binary, twos complement format, or gray code.
Features
* SNR: 74.8dBFS at fIN = 30.2MHz and fS = 40MSps
* SFDR: 88.0dBc at fIN = 30.2MHz and fS = 40MSps
* -149.1dBFS/Hz input-noise at fIN = 30.2MHz and fS = 40MSps
* 2.0V nominal input
* Typical power consumption: 180mW at 40MSps
* Integer 1-to-8 input clock divider (320MHz maximum input rate)
* Sample rates of up to 40MSps
* 1.8V analog supply voltage
* Up to 3.3V digital I/O supply voltage
* Internal ADC voltage reference
* ADC clock duty cycle correction…
* Serial port control…
* Energy saving power-down modes…
Specification
| Product Specifications | |||
|---|---|---|---|
| Resolution | 14-bit | Speed (Msps) | 40 |
| Number of Channels | 1 | SFDR (dBc)@70.2MHz | 88 |
| SNR (dBFS)@70.2MHz | 74.8 | ||
| Drop-in Replacement | Replacement Part # | Plural Price ($) | Replacement Part Price | Package |
|---|---|---|---|---|
| Yes | AD9649-40 | $14.01 | $20.01 | 32 pins (5x5 package) |
