SD9649ET-80
14-bit, 80MHz, Single Channel ADC
Overview & Features

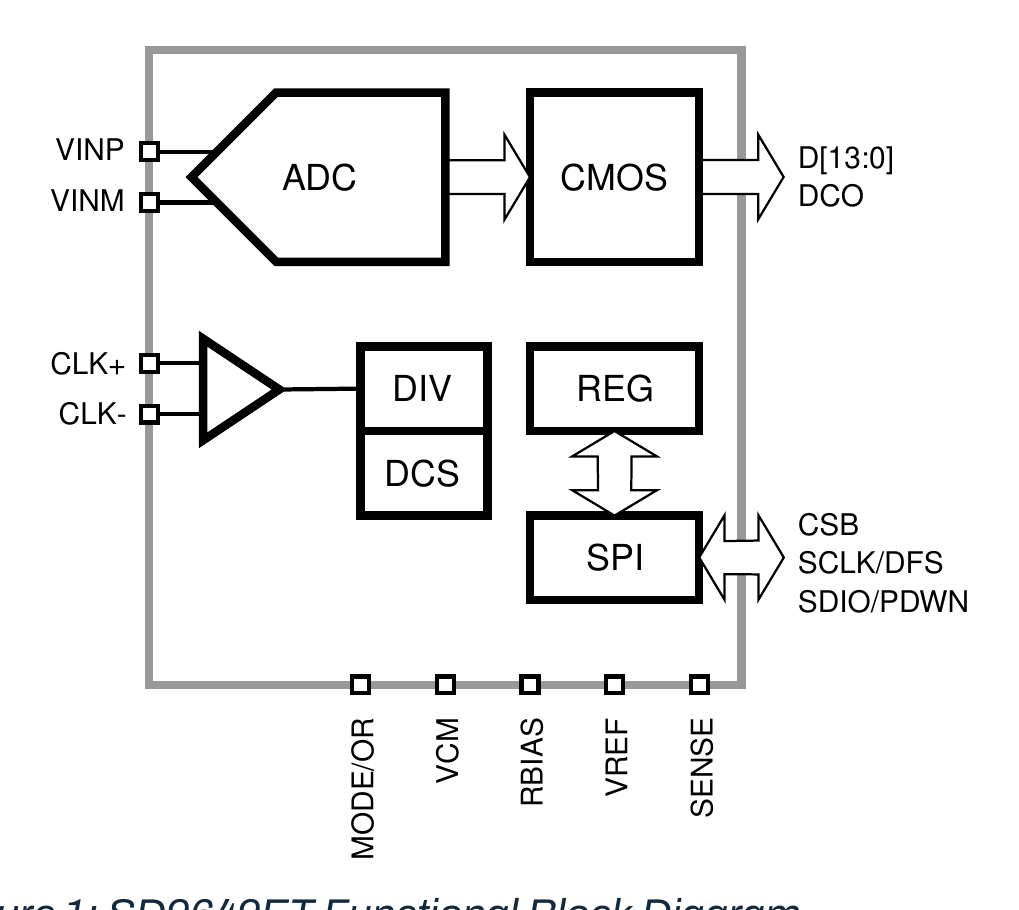

The SD9649ET is a single-channel, 14-bit, analog-to-digital converter (ADC) supporting sampling rates up to 80MSps. The SD9649ET supports an extended temperature range of -55°C to 125°C. The device uses a multistage pipeline architecture to achieve high signal-to-noise ratio (SNR) and linearity, over wide input signal bandwidth. The SD9649ET uses a CMOS output interface to transfer the data out. Programming for configuration and control is accomplished using a 3-wire SPI-compatible serial bus. The digital output data can be programmed to be delivered in offset binary, twos complement format, or gray code.
Features
* Extended temperature range (-55°C to 125°C)
* SNR: 73.0dBFS at fIN = 30.2MHz and fS = 80MSps
* SFDR: 87.0dBc at fIN = 30.2MHz and fS = 80MSps
* -150.0dBFS/Hz input-noise at fIN = 30.2MHz and fS = 80MSps
* 1.8V nominal input
* Typical power consumption: 202mW at 80MSps
* Integer 1-to-8 input clock divider (640MHz maximum input rate)
* Sample rates of up to 80MSps
* 1.8V analog supply voltage
* Up to 3.3V digital I/O supply voltage
* Internal ADC voltage reference
* ADC clock duty cycle correction
* Serial port control
* Energy saving power-down modes
Specification
| Product Specifications | |||
|---|---|---|---|
| Resolution | 14-bit | Speed (Msps) | 80 |
| Number of Channels | 1 | SFDR (dBc)@70.2MHz | 87 |
| SNR (dBFS)@70.2MHz | 73 | ||
| Drop-in Replacement | Replacement Part # | Plural Price ($) | Replacement Part Price | Package |
|---|---|---|---|---|
| Yes | AD9649-80 | $ | $ | 32 pins (5x5 package) |
