SD2143ET-12

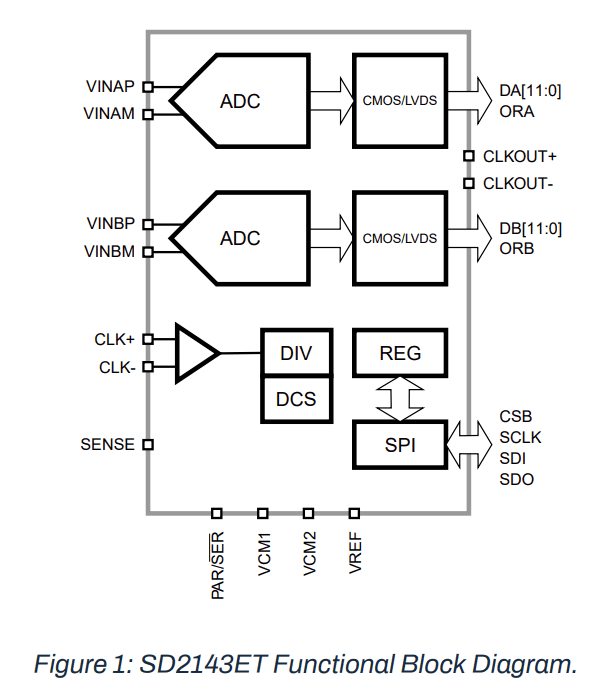

The SD2143ET is a dual-channel, 12-bit, analog-to-digital converter (ADC) supporting sampling rates up to 80MSps. The
SD2143ET supports an extended temperature range of -55°C to 125°C. The device uses a multistage pipeline
architecture to achieve high signal-to-noise ratio (SNR) and linearity, over wide input signal bandwidth. The SD2143ET
can be set to operate using either CMOS or LVDS output interface. Programming for configuration and control is
accomplished using a 4-wire SPI-compatible serial bus. The digital output data can be programmed to be delivered in
offset binary, twos complement format, or gray code.

FEATURES

• Extended temperature range (-55°C to 125°C)
• SNR: 70.6dBFS at fIN = 30.2MHz and fS = 80MSps
• SFDR: 87.0dBc at fIN = 30.2MHz and fS = 80MSps
• -147.1dBFS/Hz input-noise at fIN = 30.2MHz and fS =
  80MSps
• 1.8V nominal input
• Typical power consumption: 200mW at 80MSps
• Integer 1-to-8 input clock divider (640MHz maximum
  input rate)
• Sample rates of up to 80MSps
• 1.8V analog supply voltage
• LVDS (ANSI-644 levels) outputs
• Internal ADC voltage reference
• ADC clock duty cycle correction
• Serial port control
• Energy saving power-down modes
